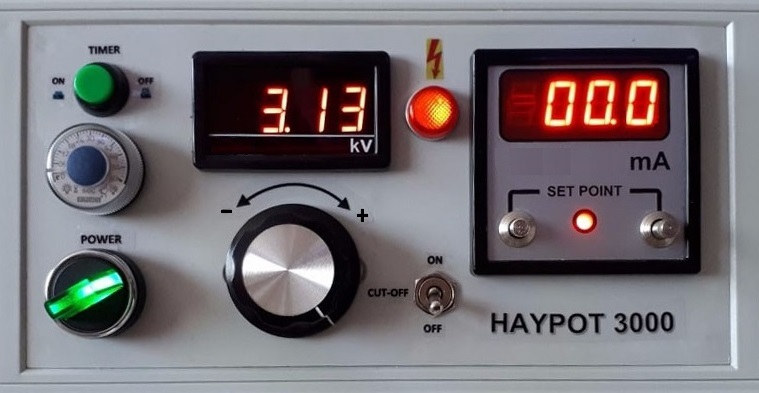

HAYPOT3000
MOBILE HIGH VOLTAGE TEST DEVICE
*Ideal for AC insulation Tests on Transformer and Electric Motors windings.
* 0 to max. 3000 Volt set
*Leakeage Current Cutoff function (0 to max. 50 mA)
*Discover the short circuit point inner side of winding by Cutoff "Off" function. Defect point burns.
*5kv hand Probes include 2 meters HV cables.
*İf the current Over the set point, device can cut the voltage and warns by buzzer.
*Digital Kilovoltmeter & Miliampermeter.
*0-60 seconds timer.
*Timer On - Timer Off selector.
*Calibration Controlled.
*Transport Handle Option
*Dimensions: axbxh : 275x320x200 mm
*Weight: 6 kg
*7x24 Service & Support and Spare Parts
2 YEAR WARRANTY
| HAYPOT 3000 HV PROBE | ||
HAYPOT100
100kV AC VOLTAGE DIVIDER
(FAR AWAY KILOVOLTMETER)
*Capasitive Voltage Divider.
* Max. AC 99.9 kV
* Class: 0.5
* Resolution: 0.1 kV*
* 2 1/2 digit, 70mm LED Display
*Ability to read the display from 20 meters distance.
* 100pF, 400MOhm.
*Dimensions: axbxh = 200x200x940 mm
*Weight: 4 kg
2 YEAR WARRANTY
